Allows to use your favorite Ultra SCSI
device as the latest USB2.0 device!

Allows to attach directly to SCSI 50P
High-Density port.
|
 |
Driver and Utility
for Windows
Vista/7 are now included in current
package. If the package doesn't include Vista
software CD-ROM, refer to Software
Download Page. |
|
|
Features
- Connect USB2SCSI to your SCSI device, and plug its USB
cable to the USB port. Available to use in just a second.
- Allows Hot-Swappable as an USB device. No need to
restart the OS, open the case, install SCSI board, or change SCSI
ID setting.
- Fully compatible with both USB2.0-enabled port and
USB1.1-enabled port. Automatically detected and mounted as an
USB1.1 Full Speed device with USB1.1-enabled port.
- USB2SCSI get it's own power through the Term Power pin
from the SCSI device.
- Supports High-speed USB2.0. Date transfer rate up to
480 Mbps.
Fully compatible with various SCSI devices or SCSI
based Application Software;
Scanners, Film Scanners, CD-ROM,
CD-R/W, DVD, Zip, Jaz, HDD, MO,VueScan, WinBench and more. Refer
to "Certified SCSI Devices" below.
- The USB2SCSI has two different operation mode and
switches automatically.
[USB mass storage mode]
With
Microsoft standard Mass Storage class driver. Supports only one
SCSI device per one USB2SCSI.
[SCSI emulation mode]
With
RATOC original driver. Supports up to seven SCSI devices in daisy
per one USB2SCSI. You must use this mode for image scanners, film
scanners or other SCSI devices except mass storage
devices.
*SCSI emulation mode is only for Windows.
- Ultra-slim and compact design allows you to use with
another SCSI connector either side-by-side or stacked.
| CPU |
Pentium4 1500MHz |
| M/B |
FIC VC11 |
| Memory |
256 MB |
| HDD |
Seagate ST34501N (FAT32) |
| OS |
Windows 2000 |
USB2.0
Host Adapter |
REX-PCIU2 |
BenchMark
Test software |
WinBench
99 |
|
System
Requirements
- Mac
Works as an USB 2.0 device with USB 2.0
enabled Macintosh with Mac OS X 10.2.7 or later, 10.3, 10.4, 10.5,
10.6
- Windows PC
Windows 7 / Vista / XP / Me / 2000 /
98SE
*Regarding Windows Vista software, refer to Software
Download Page.
*Note :USB 2.0 embedded controller or add
in host adapter required for USB2.0 speed, otherwise it works as
USB1.1 device.
- SCSI device
- Hi-Density 50 pin female SCSI-2 connector
- Term-Power output capability
- Single-End interface
- Internal or external Terminator

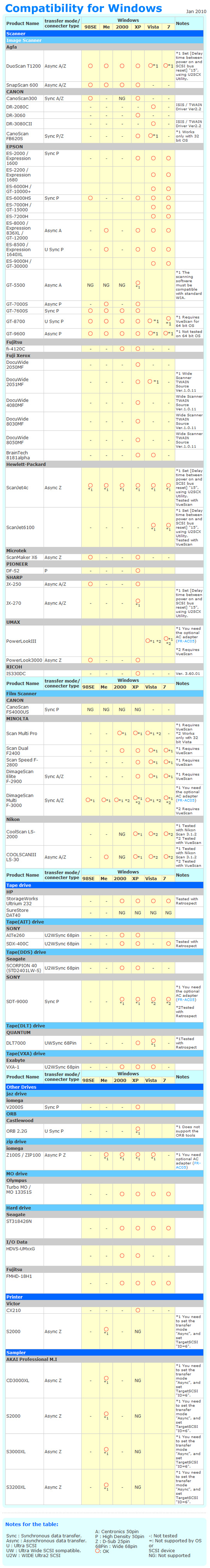

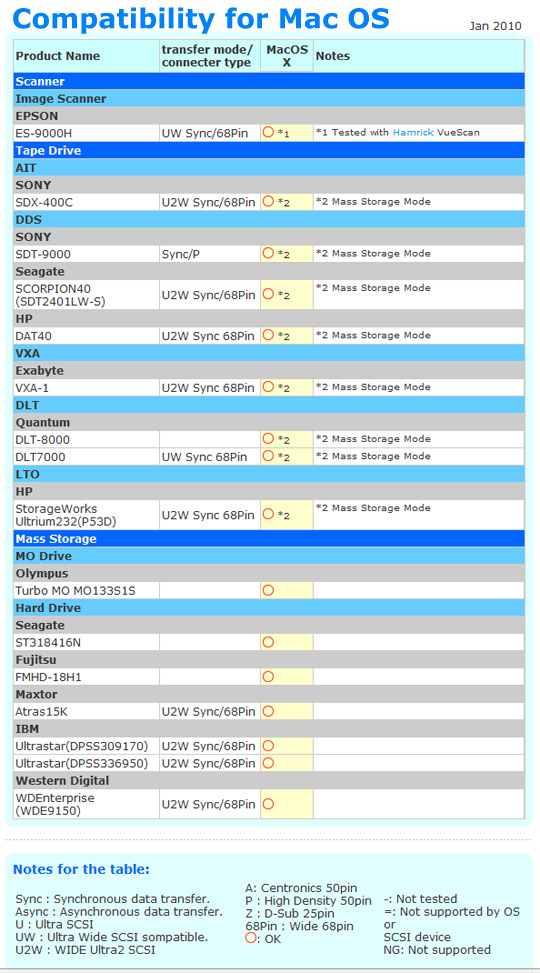

Certified SCSI Devices
Specifications
| Bus
interface |
[USB] USB
2.0/1.1
[SCSI] Ultra SCSI |
| Data
transfer rate |
[SCSI]
20
MB/sec with Ultra SCSI devices (synchronous)
10 MB/sec with
FAST SCSI devices (synchronous)
5 MB/sec
(asynchronous)
[USB]
480 Mbps(High Speed)/12Mbps
(Full Speed) |
| Connector
Type |
[SCSI]
Hi-Density 50 pin Male SCSI-II
connector
[USB]
USB TypeA Plug with 1 meter (39')
USB 2.0 certified cable. |
| Package
includes |
- USB2SCSI USB2.0 to UltraSCSI converter
- USB2SCSI software
CD-ROM
- USB2SCSI software CD-ROM for Windows Vista
If the
package doesn't include Vista software CD-ROM, refer to Software
Download Page.
[MacOS
software]
- SCSI Configuration
Utility
[Windows software]
-
Format Utility
- SCSI Configuration
Utility
- User's Guide |
| Physical
characteristics |
51 mm(W) x 52 mm(D)
x 18 mm(H) 98 g |
| Operating
requirements |
 - DC +5V 300mA (Max).
SCSI device must provide the power through
SCSI Termination Power output pin. If SCSI termination power
is not available, you need to connect an OPTIONAL AC adapter
(sold separately).
- USB
Bus Power 2 mA (Max)
Temperature from
0°C to 55°C
Relative humidity 20-80%
(Non-condensing) |
| Electromagnetic Emissions Standards |
CE Mark,
VCCI/FCC Part 15, Class B |
| Options |
-
High-Density 50F to Centronics 50M adapter
- AC Adapter for
USB2SCSIOutput DC5V/2A
 1.7x4.0mmplug
Center Positive Polarity
(center"+", External"-")
Regulated Output
|
| Warranty |
1
year |
|
|
