3 x NetStor PCIe Expansion Box

Download DataSheet/Manual:

Datasheet
User Manual
Compatibility List

Product Overview :

Support ALL OS : Windows (all) / Mac (all) / Linux (all) / All OS supported
TurboBox is OS Independent

Netstor's TurboBox®, PCI-Express Expansion box, series is a revolutionary product to solve the limitation on the I/O expansion of laptop or the PCI Express slot shortage of desktop PC or server. The TurboBox® provides a simple, cost-effective solution for expanding the available PCI Express slots of Mac or PC workstations and enhancing the I/O capability of laptop that allows users to add any standard PCI Express cards for powerful their laptop. This expansion box is an efficient way to maximize your existing personal computer or server workstation.

Host available for Desktop PC and Laptop.

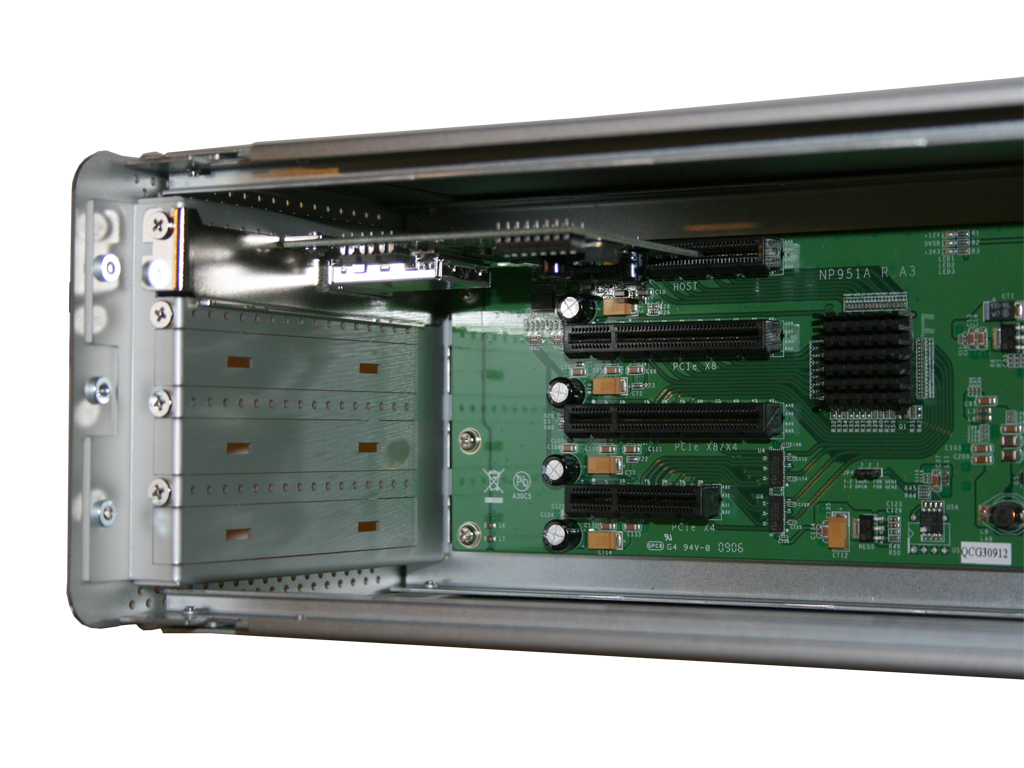

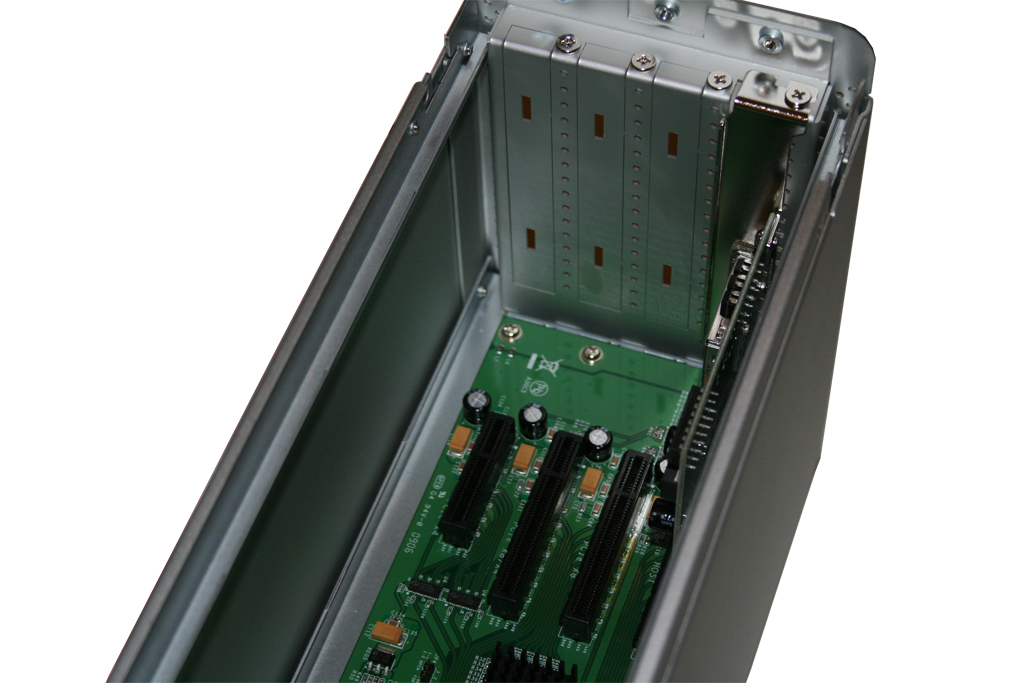

Except for the slot of the Target Adaptor, the TurboBox® remains three slots (Two PCI-Express x8 slots and one PCI-Express x4) can work well with any standard-length PCI Express add-on cards. This box includs a high quality, server-grade power supply for sufficient power and a quiet cooling fan for self-contained ventilation. The TurboBox® can easily connect to either your desktop or laptop through a PCI Express host adaptor or ExpressCard34 is availalbe for optional from Netstor.

Features :

- Supports up to 3 extra PCI-Express slots (Slot 2 is available for PCIe x16 Graphic Card with double width space)
- Aluminum housing, anodized surface, benefits for cooling and durability
- Built-in a big & quiet Fan cooling for self-contained ventilation

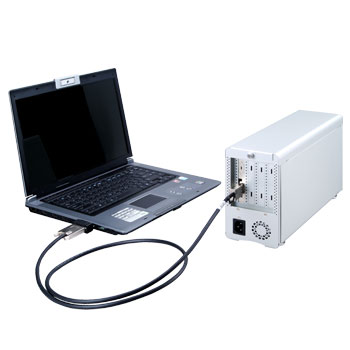

- Desktop PCI-Express & Laptop ExpressCard34 supported
- Internal Ultra-quiet 220W Power Supply

Specifications :

Host Interface	External PCI-Express
No. of Slot(s)	Up to 3 PCI-Express slots (Two PCIe x8 (One is open type for PCIe x16 Graphic Card) and, One PCIe x4)
Material	Aluminum Housing
Power Supply	Single 220W (IPC-Grade) (AC Input: 100-240V, 50~60Hz)
Cooling	One Hot-Swappable 80x80x25 mm Cooling Fan
LED Display	Power On
Dimensions	Model: NA210A-L Case Size: 371 x 110 x 200 mm Card Length Available: 312(L)mm / 12.28(L) inch
O.S Support	Windows (all) / Mac (all) / Linux (all) / All OS supported It is OS Independent
